Description

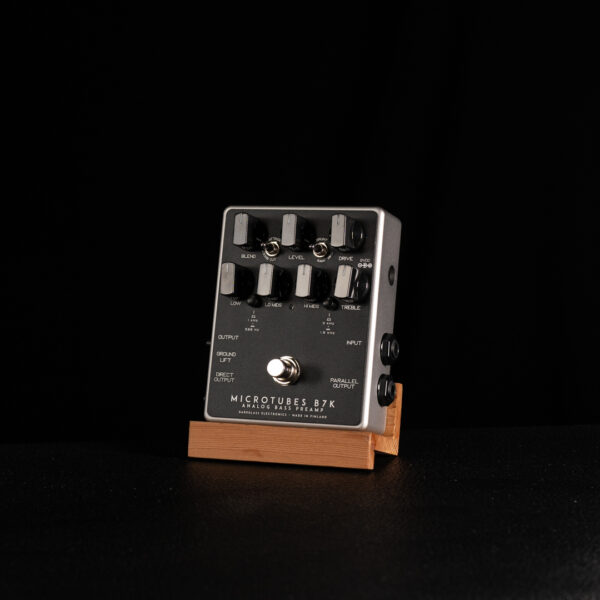

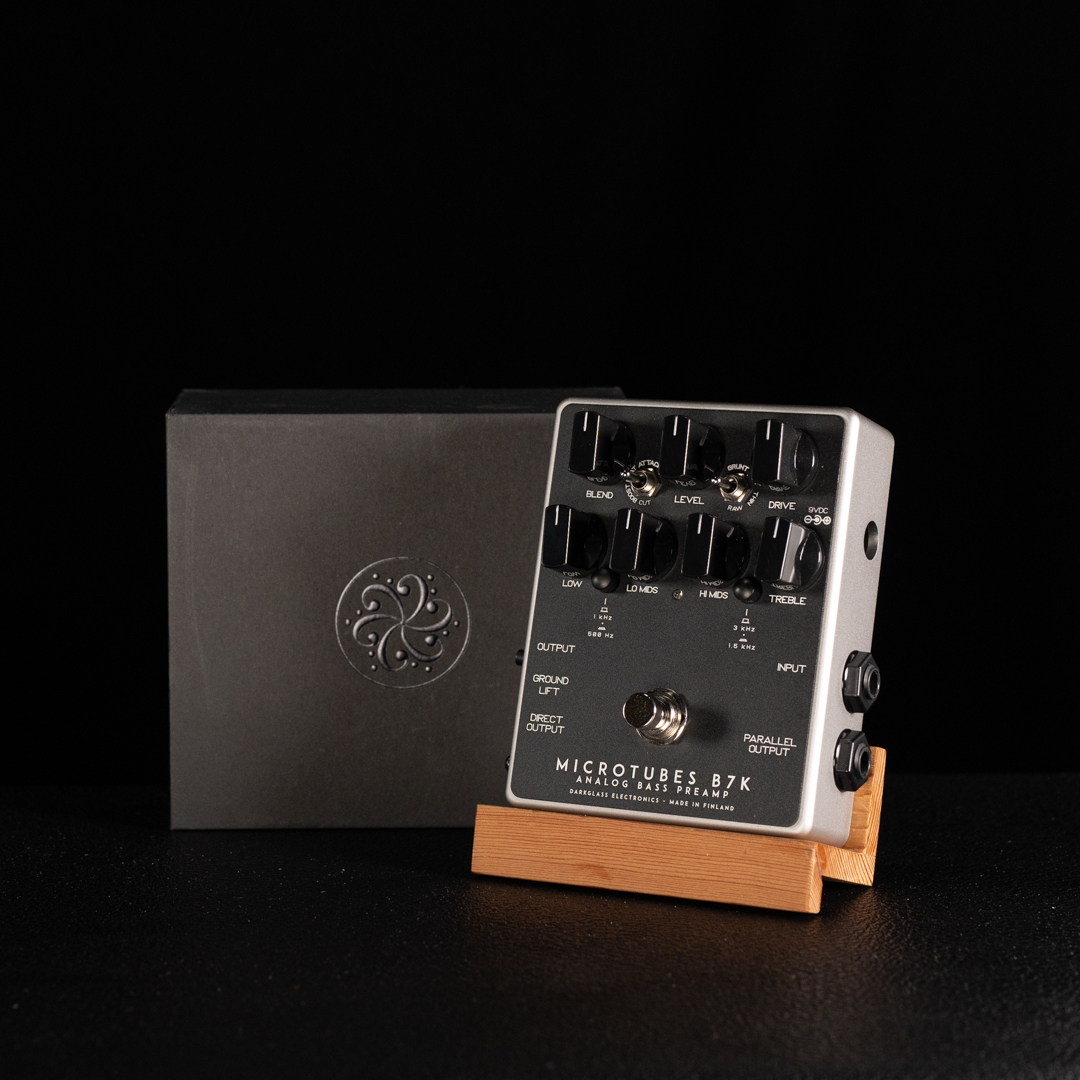

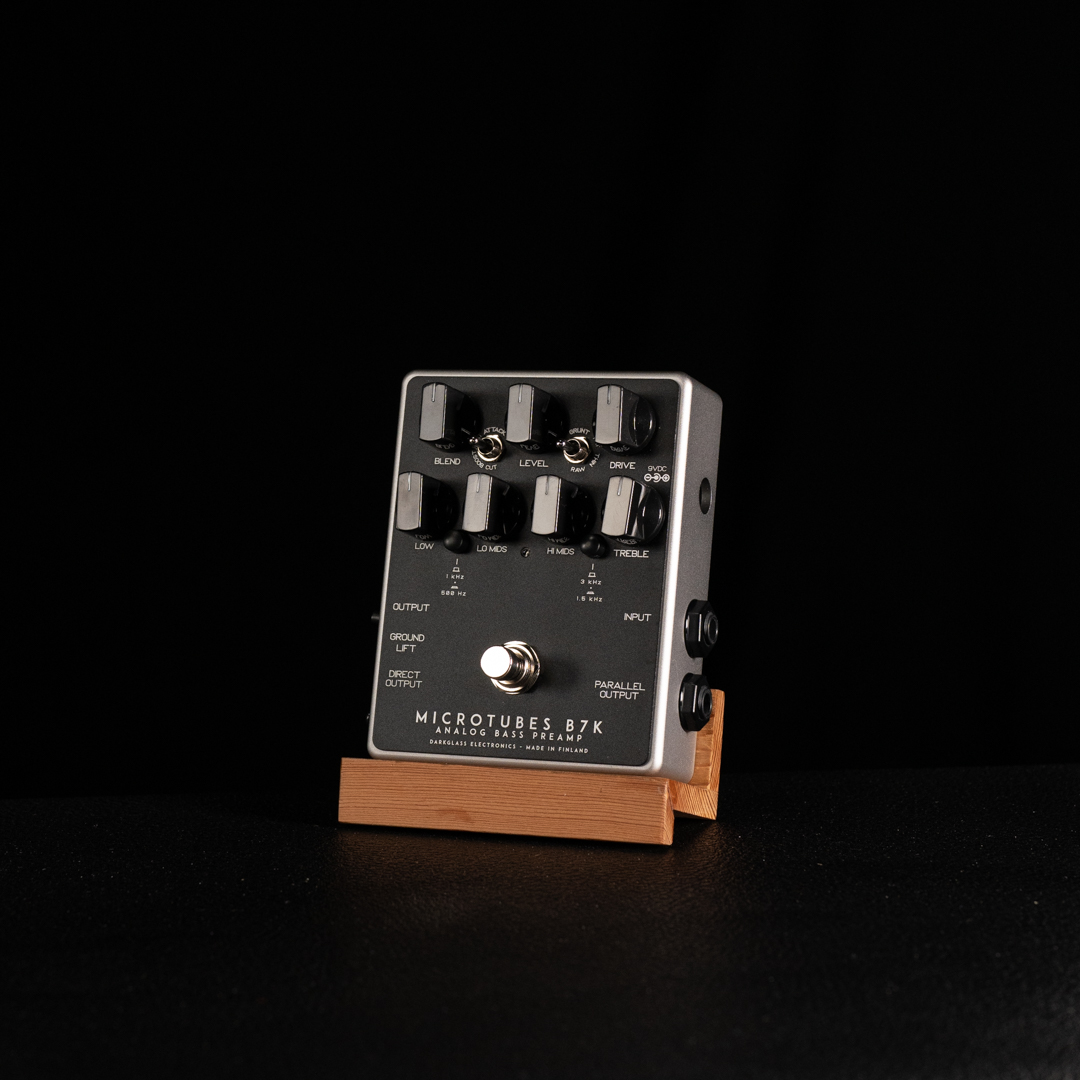

Darkglass Electronics Microtubes B7K V2 Analog Bass Preamp Pedal
With the Microtubes B7K v2 you get all the features of the original, with the ability to better sculpture your tone: on the low mids you have the option to change the center frequency from 1KHz to 500Hz, and on the high mids you have the option to change the center frequency from 3kHz to 1.5kHz. This will enable you to tailor your absolute dream distortion tone.
The character and core of the Microtubes B7K remains the same, still retaining the powerful dynamic saturation circuit of the B3K and adds a four-band equalizer and a balanced line driver for even greater versatility. Designed for both studio and live use, it will take your direct sound to a whole new level.
Front Features
Blend
Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.
Level
Sets the volume of the overdriven signal.
Drive
Sets the amount of saturation in the overdriven signal.
Attack Switch
Sets the amount of treble content to saturate: The “Boost” setting emphasizes the treble content extra clarity and presence.
The “Flat” position leaves this register untouched while the “Cut” position will reduce the amount of high frequencies being saturated.
This new addition helps to keep the treble portion of the signal under control, specially useful when playing with new strings and/or cabinets with tweeters!
Grunt Switch
Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage.
Low: +-12dB @ 100Hz
Low Mids Switch: This switch change the center frequency of the Low Mids from 1kHz to 500Hz.
Low Mids: +-12dB @ 500Hz
Hi Mids: +-12dB @ 1.5kHz
Hi Mids Switch: This switch change the center frequency of the Hi Mids from 3kHz to 1.5kHz.
